التركيز على إنتاج VFD、Servo ومختلف محركات السيارات
كمية المبيعات السنوية 900000+ وحدة
نطاق الطاقة: 0.4kw ~ 2000kw، نطاق الجهد: 110v ~ 10000v
شبكة توزيع الخدمات تغطي العالم
| Place of Origin: | China |
|---|---|
| اسم العلامة التجارية: | ZONCN |
| إصدار الشهادات: | KC; CE |
| Model Number: | NZ100-5R5G-4 |
| Minimum Order Quantity: | 1 PC |
| Packaging Details: | inside: box; outside: carton |
| Delivery Time: | 7-30 days |
| Payment Terms: | T/T, L/C, Western Union, Paypal |
| Supply Ability: | 100,000 pcs/month |
| Product: | variable frequency drives | Brand: | ZONCN |
|---|---|---|---|
| Input: | 380v 3ph | Power: | 5.5kw/7HP |
| Frequency: | 50hz/60hz | Communication: | RS485 (MODBUS) |
| control mode: | V/F control | warranty: | 18 months |

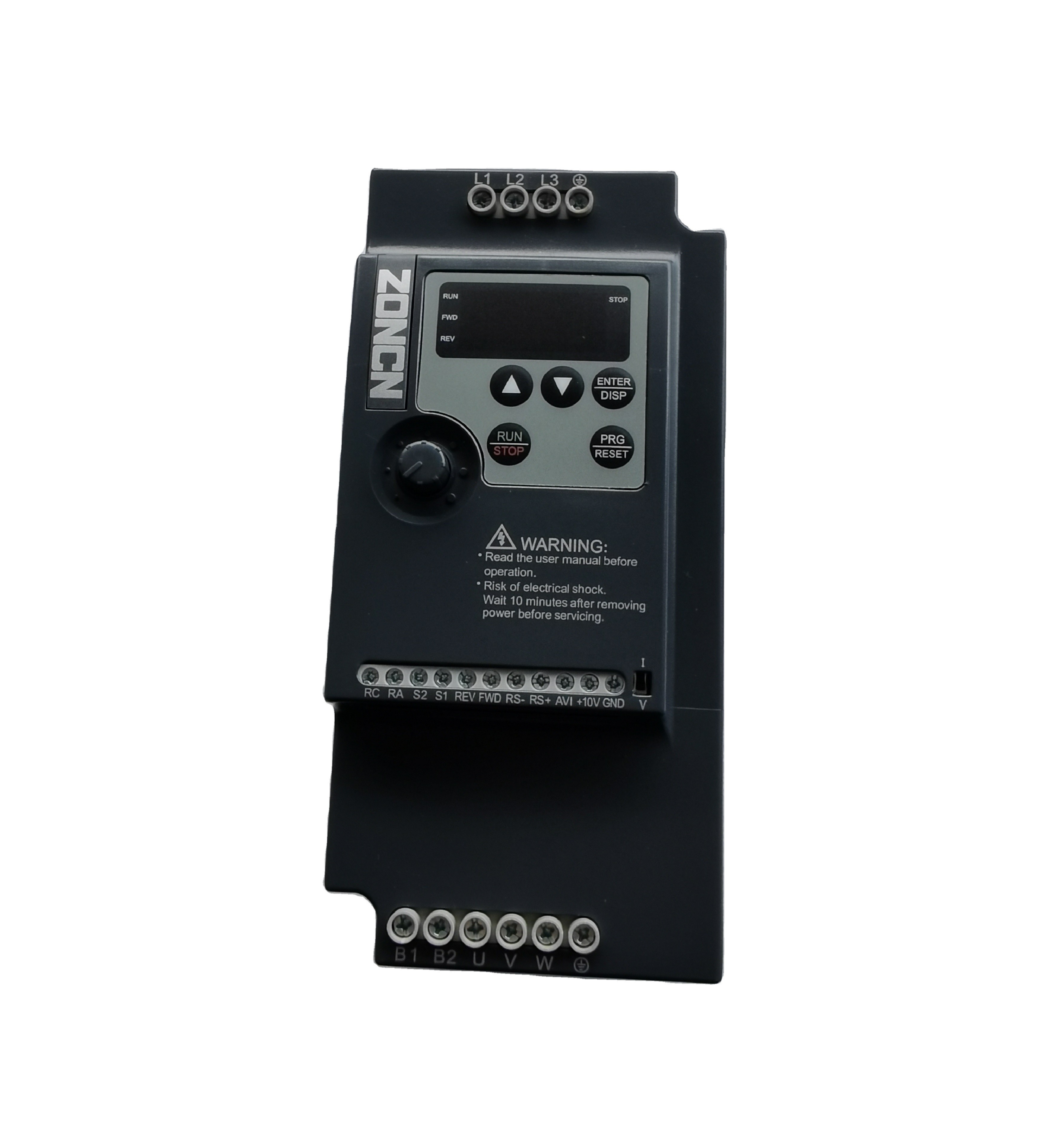

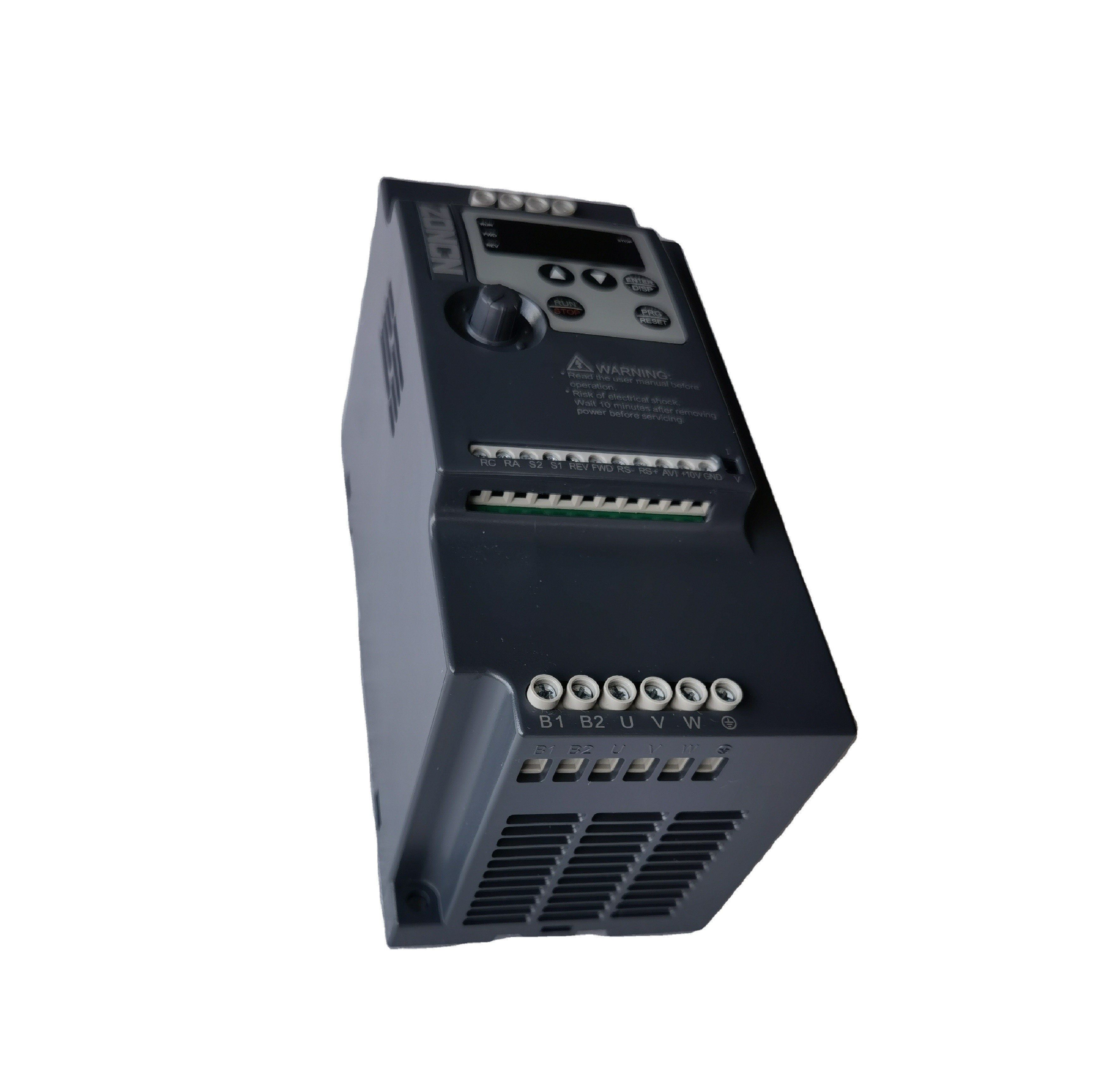

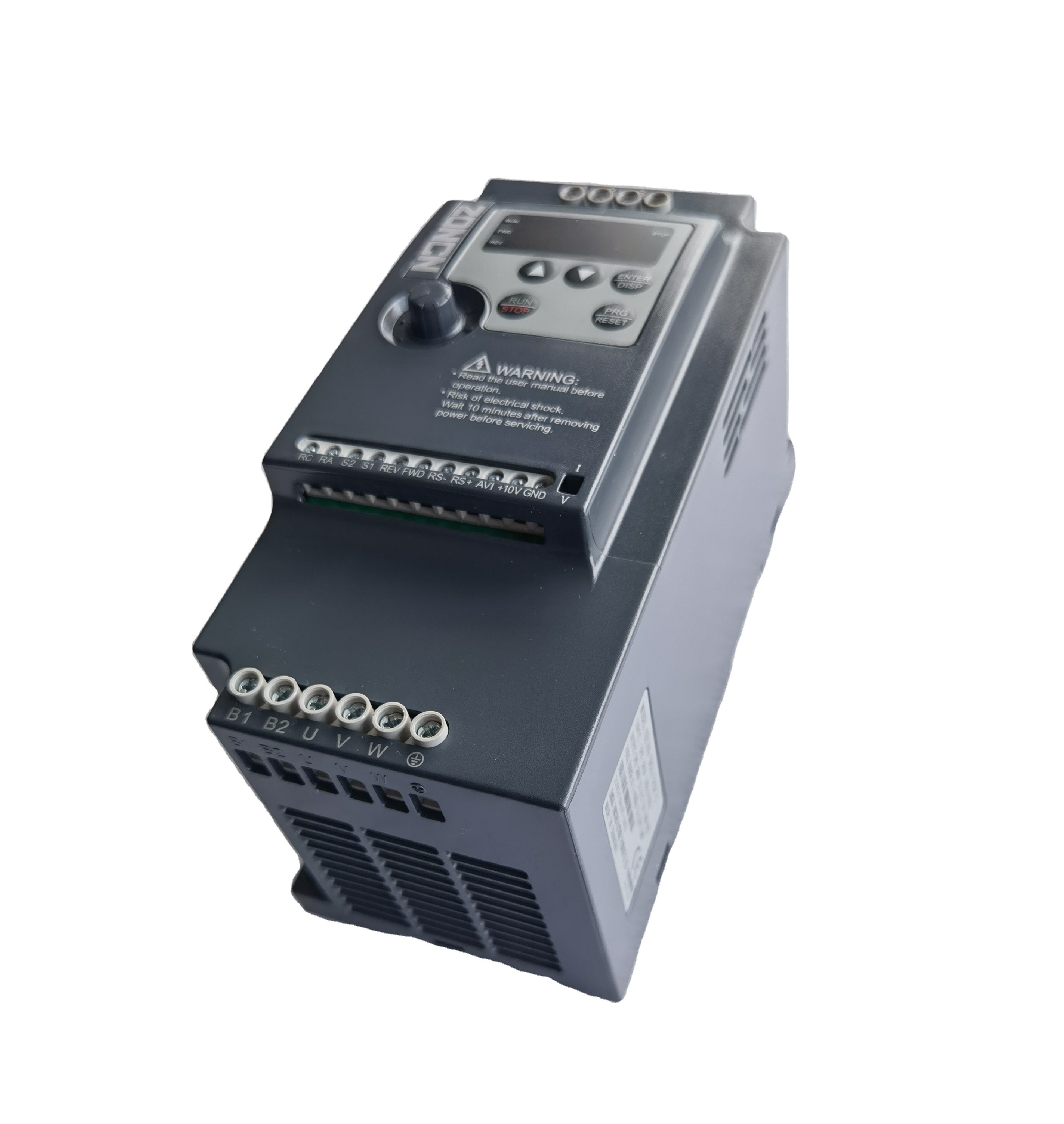

380v VFD Inverter 5.5kw Variable Frequency Drives 7hp From ZONCN
ZONCN NZ100 VFD inverter Features
The ZONCN VFD inverter is a compact and cost-effective solution designed for applications with limited space. Its small size and affordable price make the VFD inverter ideal for small-scale installations. With V/F control, the VFD inverter efficiently regulates motor speed, ensuring energy savings. The built-in PID control enhances the precision of the VFD inverter, making it suitable for various industrial processes.
One standout feature of the VFD inverter is its externally accessible terminals, simplifying wiring and maintenance. Additionally, the VFD inverter supports an external remote control keyboard, allowing flexible operation. A potentiometer knob is integrated into the VFD inverter, enabling easy speed adjustment. The VFD inverter also includes analog input terminals for versatile signal integration.

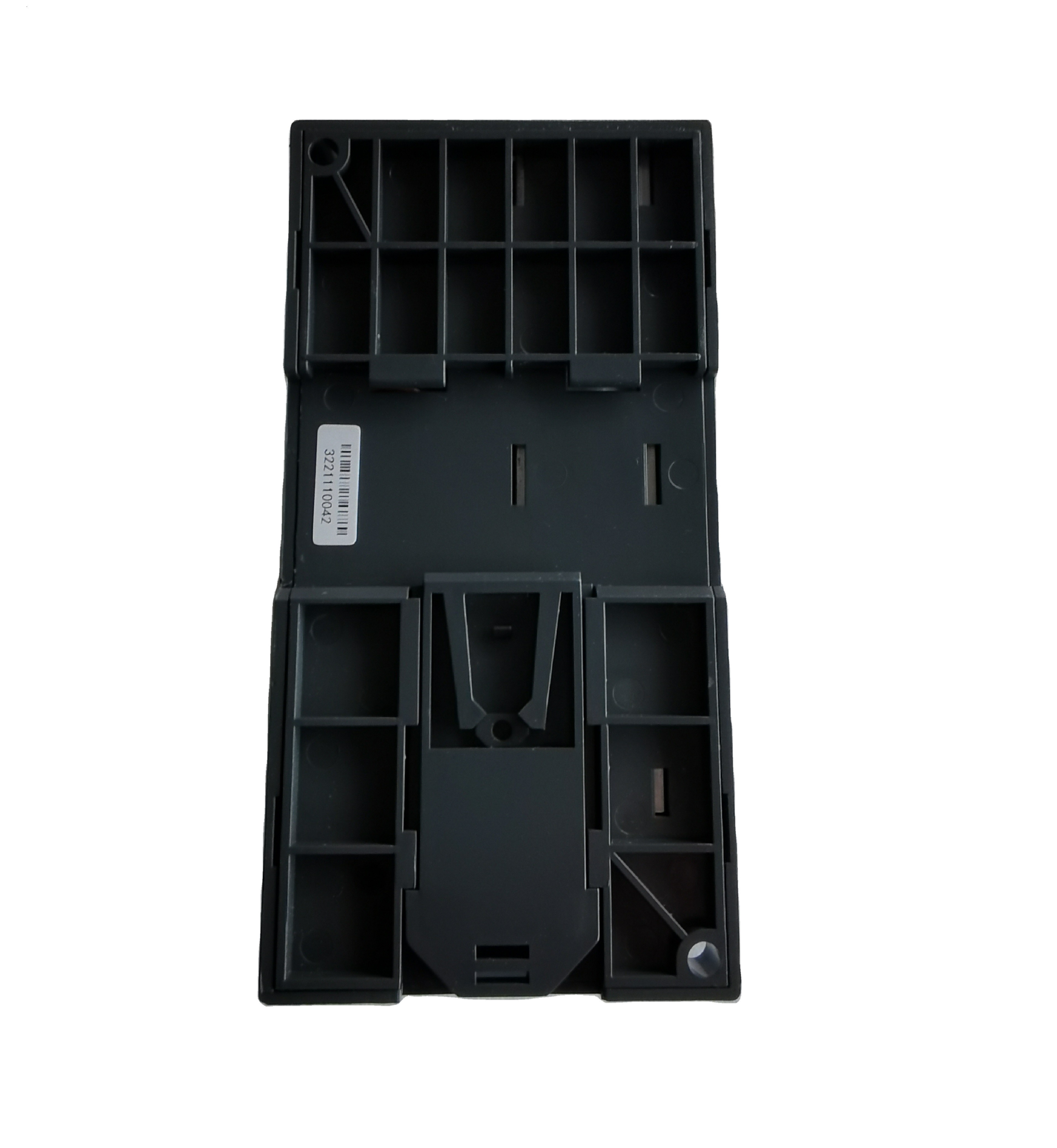

For communication, the VFD inverter supports RS485 communication, ensuring compatibility with industrial systems. The VFD inverter (5.5KW and below) can be mounted on a 35mm DIN rail, saving installation space. Furthermore, the VFD inverter supports OEM customization, making it adaptable for specialized applications.
In summary, the ZONCN VFD inverter combines affordability, compact design, and advanced features like PID control and RS485 communication. Whether for speed regulation, energy efficiency, or remote operation, the VFD inverter delivers reliable performance. Its user-friendly design, including external ports and a potentiometer, enhances convenience. For small to medium power applications, the VFD inverter is a versatile and economical choice.
VFD inverter's Nameplate Description
VFD inverter's Specification
| VFD Model | Input Voltage | Output Power (KW) | Input Current (A) | Output Current (A) | Motor Equipped (KW) |
| NZ100-0R4G-2 | 1PH AC220V+/-15% | 0.4 | 5.4 | 2.5 | 0.4 |
| NZ100-0R75G-2 | 0.75 | 8.2 | 5 | 0.75 | |
| NZ100-1R5G-2 | 1.5 | 14 | 7 | 1.5 | |
| NZ100-2R2G-2 | 2.2 | 23 | 11 | 2.2 | |
| NZ100-0R75G-4 | 3PH AC380V+/-15% | 0.75 | 3.4 | 2.7 | 0.75 |
| NZ100-1R5G-4 | 1.5 | 5.0 | 4.0 | 1.5 | |
| NZ100-2R2G-4 | 2.2 | 5.8 | 5.0 | 2.2 | |
| NZ100-3R7G-4 | 3.7 | 10.7 | 8.6 | 3.7 | |
| NZ100-5R5G-4 | 5.5 | 14.6 | 12.5 | 5.5 | |
| For powers above 5.5kw, NZ200 series with vector control is recommended. | |||||
VFD inverter's Dimension
VFD inverter's Wiring Diagram
VFD inverter's Workshop
VFD inverter's Application
