التركيز على إنتاج VFD、Servo ومختلف محركات السيارات
كمية المبيعات السنوية 900000+ وحدة
نطاق الطاقة: 0.4kw ~ 2000kw، نطاق الجهد: 110v ~ 10000v
شبكة توزيع الخدمات تغطي العالم
| Place of Origin: | China |
|---|---|
| اسم العلامة التجارية: | ZONCN |
| إصدار الشهادات: | KC; CE |
| Model Number: | NZ100-7R5G-4 |
| الوثيقة: | NZ100 English Catalog.pdf |
| Minimum Order Quantity: | 1 PC |
| Packaging Details: | inside: box; outside: carton |
| Delivery Time: | 7-30 days |
| Payment Terms: | T/T, L/C, Western Union, Paypal |
| Supply Ability: | 100,000 pcs/month |
| Product: | variable frequency drives | Brand: | ZONCN |
|---|---|---|---|
| Series: | NZ100 | control mode: | V/F control |
| Input: | 380v three phase | Power: | 10HP/7.5kw |
| Frequency: | 50hz/60hz | Communication: | RS485 (MODBUS) |
| warranty: | 18 months | OEM: | Yes |

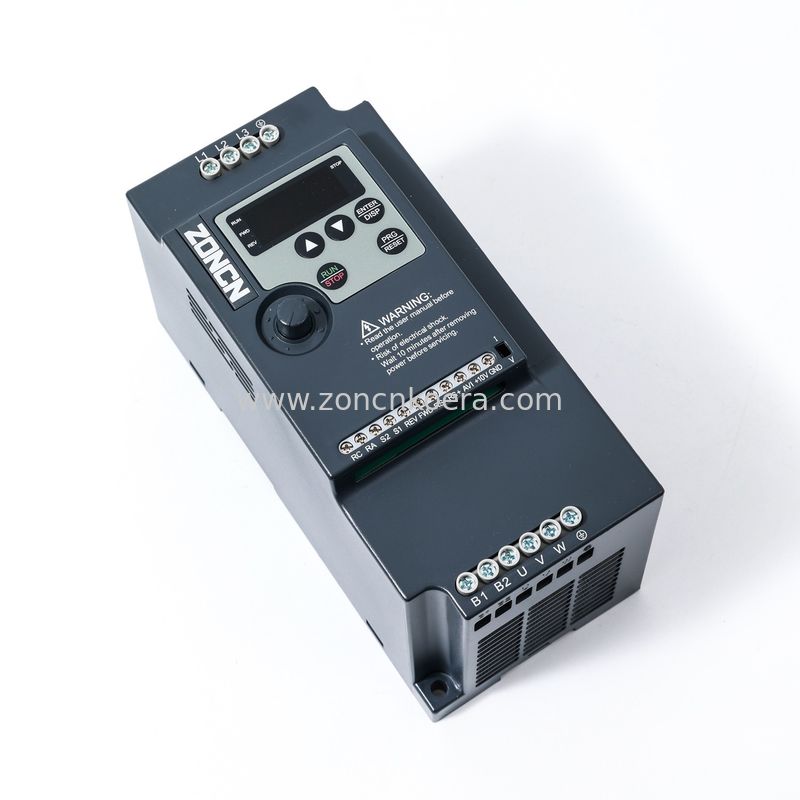

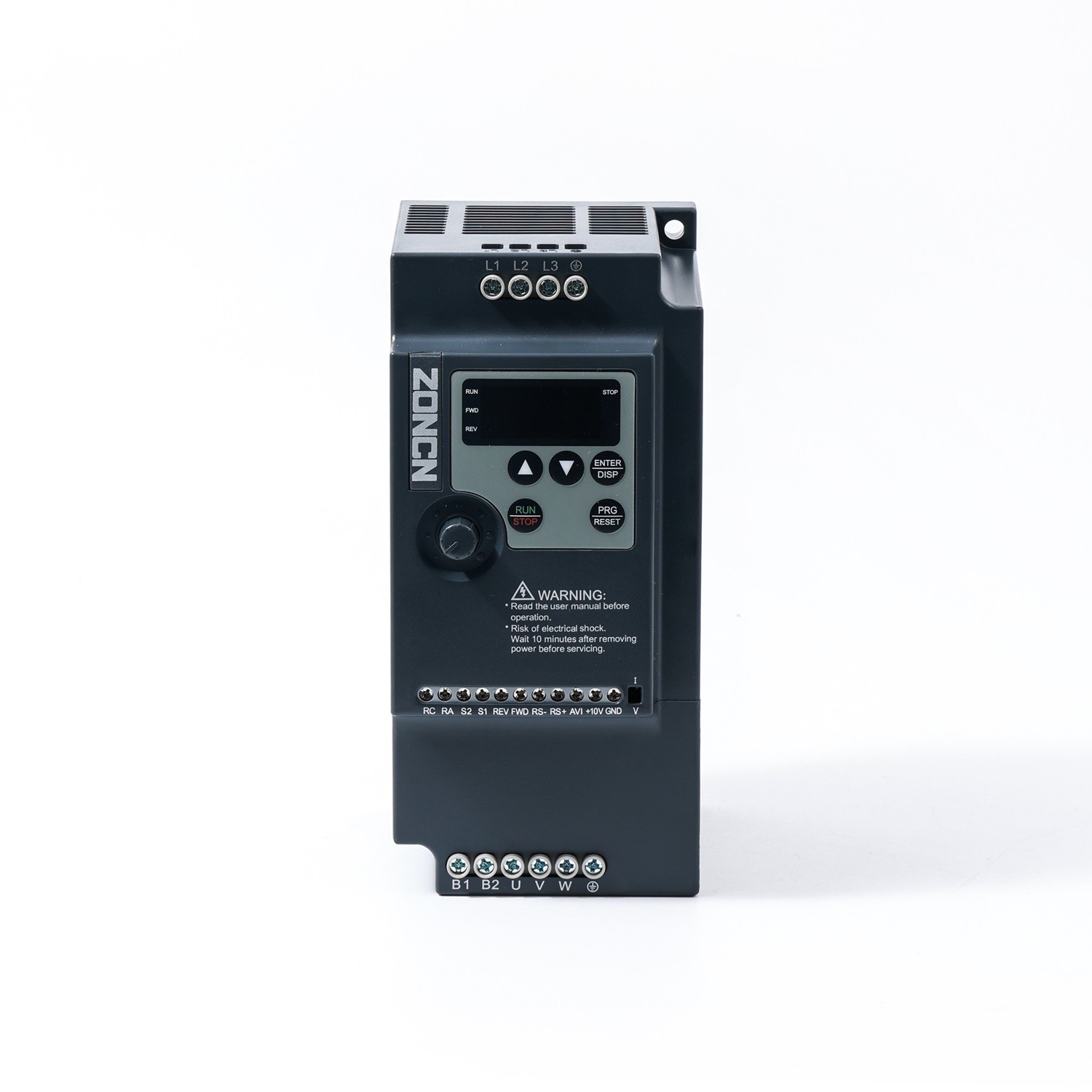

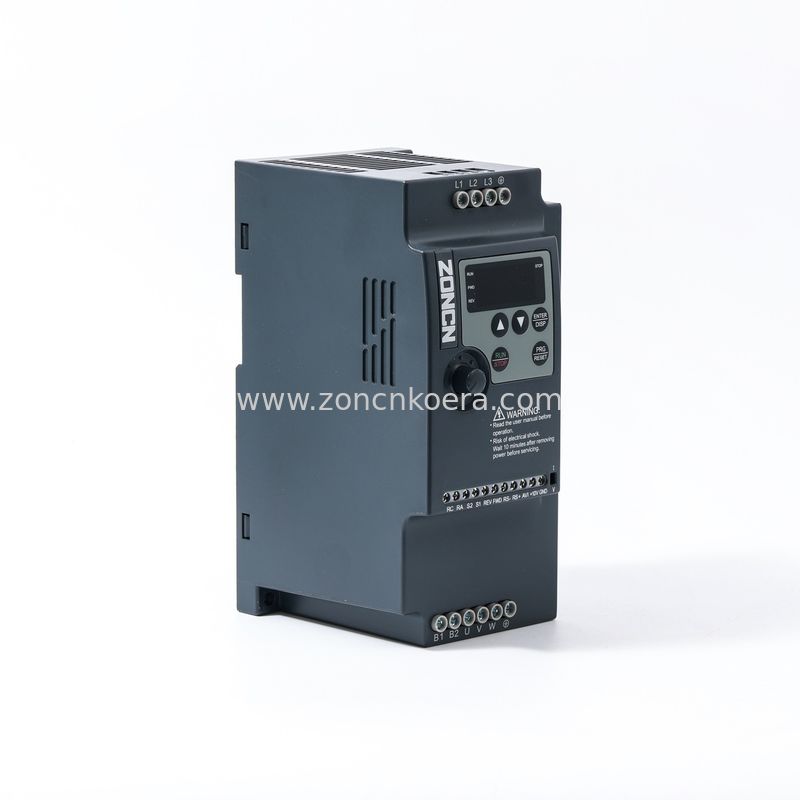

380v VFD Inverter 7.5kw Variable Frequency Drives 10hp From ZONCN
ZONCN NZ100 VFD inverter Features
The ZONCN VFD offers an exceptional balance of affordability and performance in motor speed control applications. This VFD features a compact design that allows installation in space-constrained environments without compromising functionality.
At its core, the ZONCN VFD utilizes advanced V/F control technology to precisely regulate motor speed while optimizing energy efficiency. The VFD incorporates built-in PID control for enhanced process accuracy in various industrial applications.

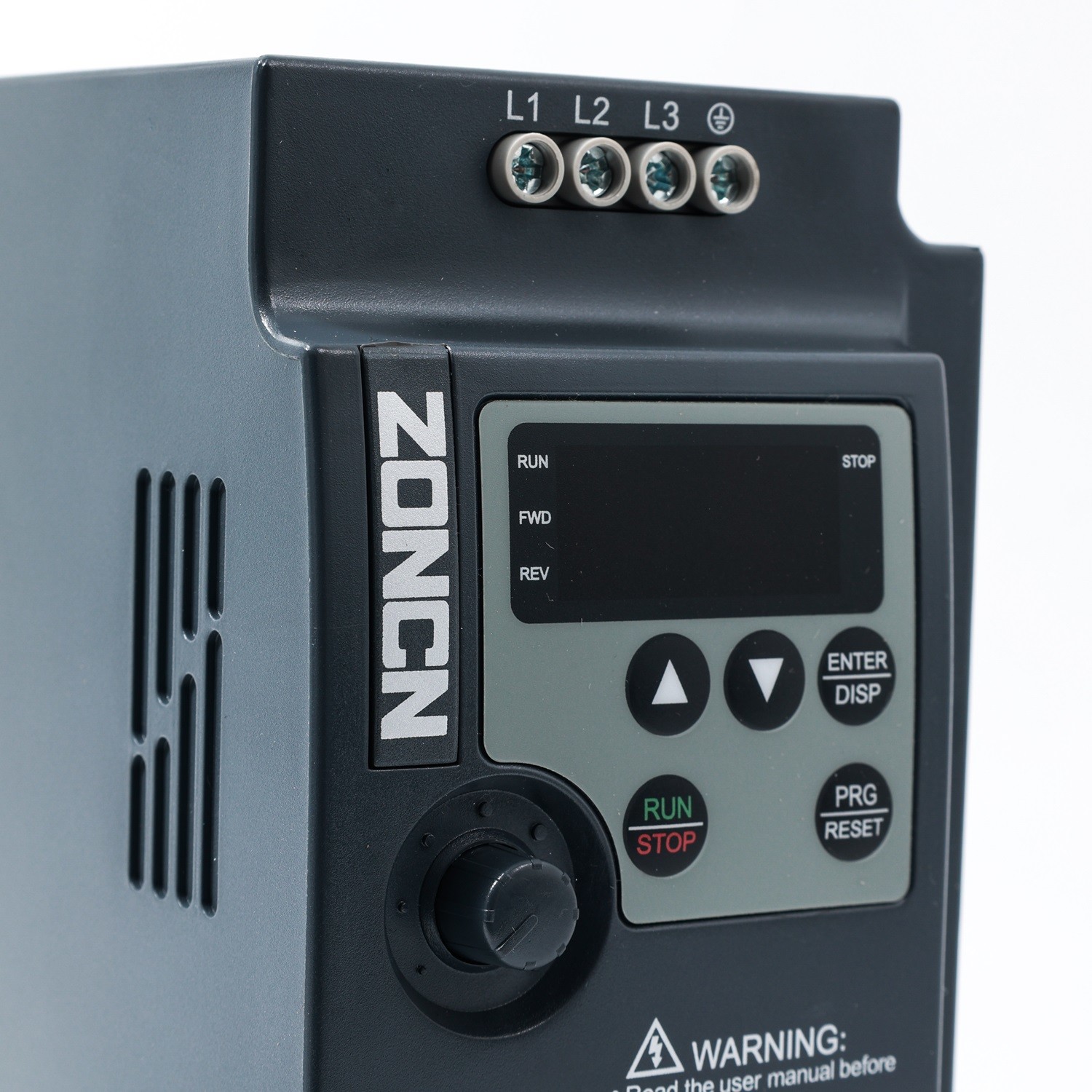

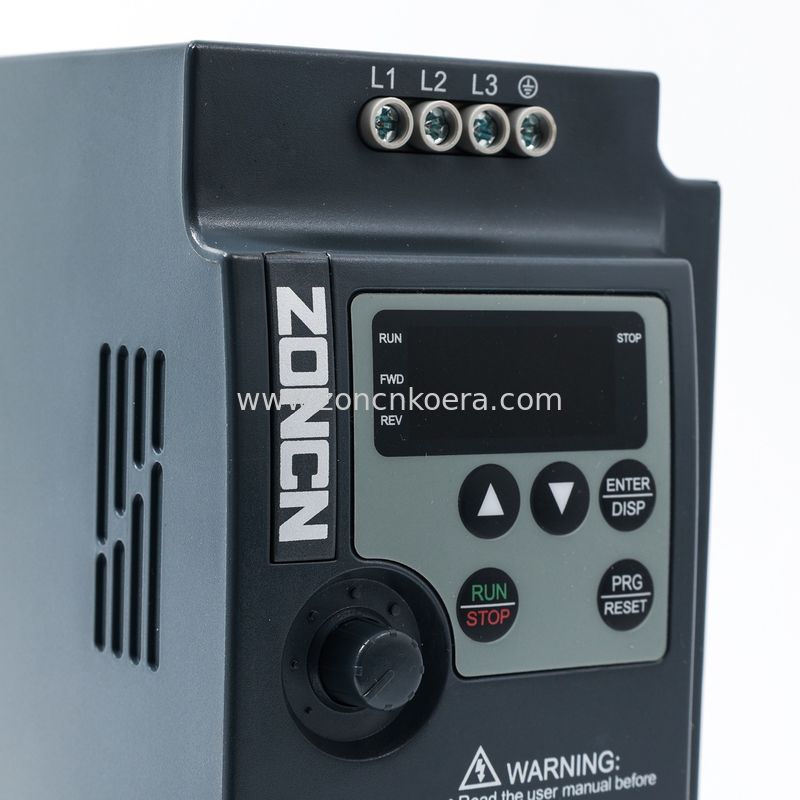

Engineered for convenience, this VFD features externally accessible wiring terminals that significantly simplify installation and maintenance. Operators can easily adjust motor speed through the integrated potentiometer knob, while the detachable remote keyboard enables flexible operation from a distance.
The VFD provides versatile control options through analog input terminals and supports RS485 communication with both MODBUS RTU and ASCII protocols for seamless system integration. For space-saving installation, models rated up to 5.5KW are compatible with standard 35mm DIN rail mounting.
Furthermore, the ZONCN VFD supports OEM customization, allowing manufacturers to tailor the solution to specific application requirements. Whether used in industrial automation, HVAC systems, or material handling equipment, this VFD delivers reliable performance with energy-saving benefits.
With its combination of compact size, intelligent control features, and flexible installation options, the ZONCN VFD represents an ideal solution for modern motor control applications across various industries.
VFD inverter's Nameplate Description
VFD inverter's Specification
| VFD Model | Input Voltage | Output Power (KW) | Input Current (A) | Output Current (A) | Motor Equipped (KW) |
| NZ100-0R4G-2 | 1PH AC220V+/-15% | 0.4 | 5.4 | 2.5 | 0.4 |
| NZ100-0R75G-2 | 0.75 | 8.2 | 5 | 0.75 | |
| NZ100-1R5G-2 | 1.5 | 14 | 7 | 1.5 | |
| NZ100-2R2G-2 | 2.2 | 23 | 11 | 2.2 | |
| NZ100-0R75G-4 | 3PH AC380V+/-15% | 0.75 | 3.4 | 2.7 | 0.75 |
| NZ100-1R5G-4 | 1.5 | 5.0 | 4.0 | 1.5 | |
| NZ100-2R2G-4 | 2.2 | 5.8 | 5.0 | 2.2 | |
| NZ100-3R7G-4 | 3.7 | 10.7 | 8.6 | 3.7 | |
| NZ100-5R5G-4 | 5.5 | 14.6 | 12.5 | 5.5 | |
| For powers above 5.5kw, NZ200 series with vector control is recommended. | |||||
VFD inverter's Dimension
VFD inverter's Wiring Diagram
VFD inverter's Workshop
VFD inverter's Application
