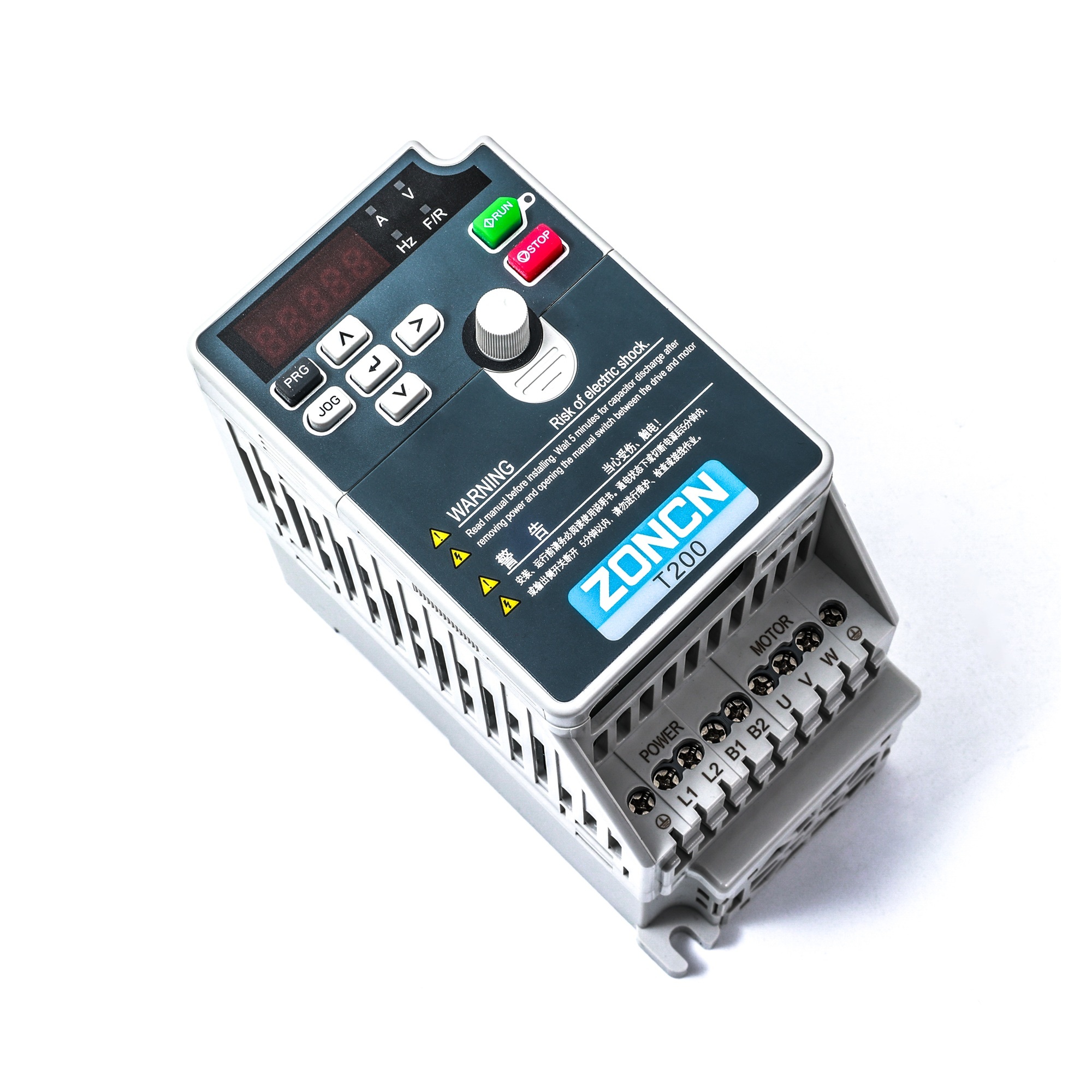

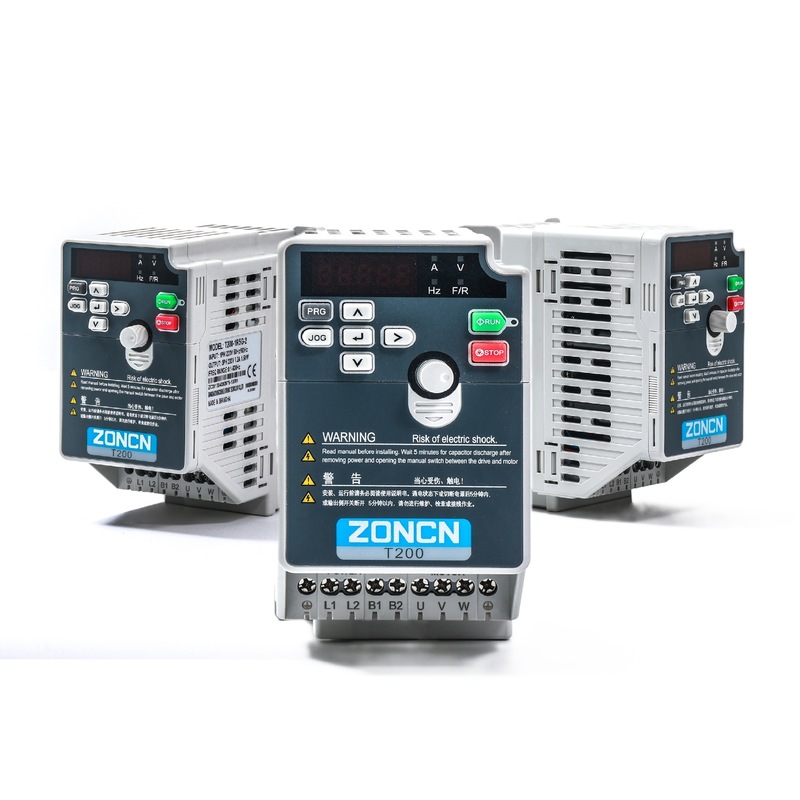

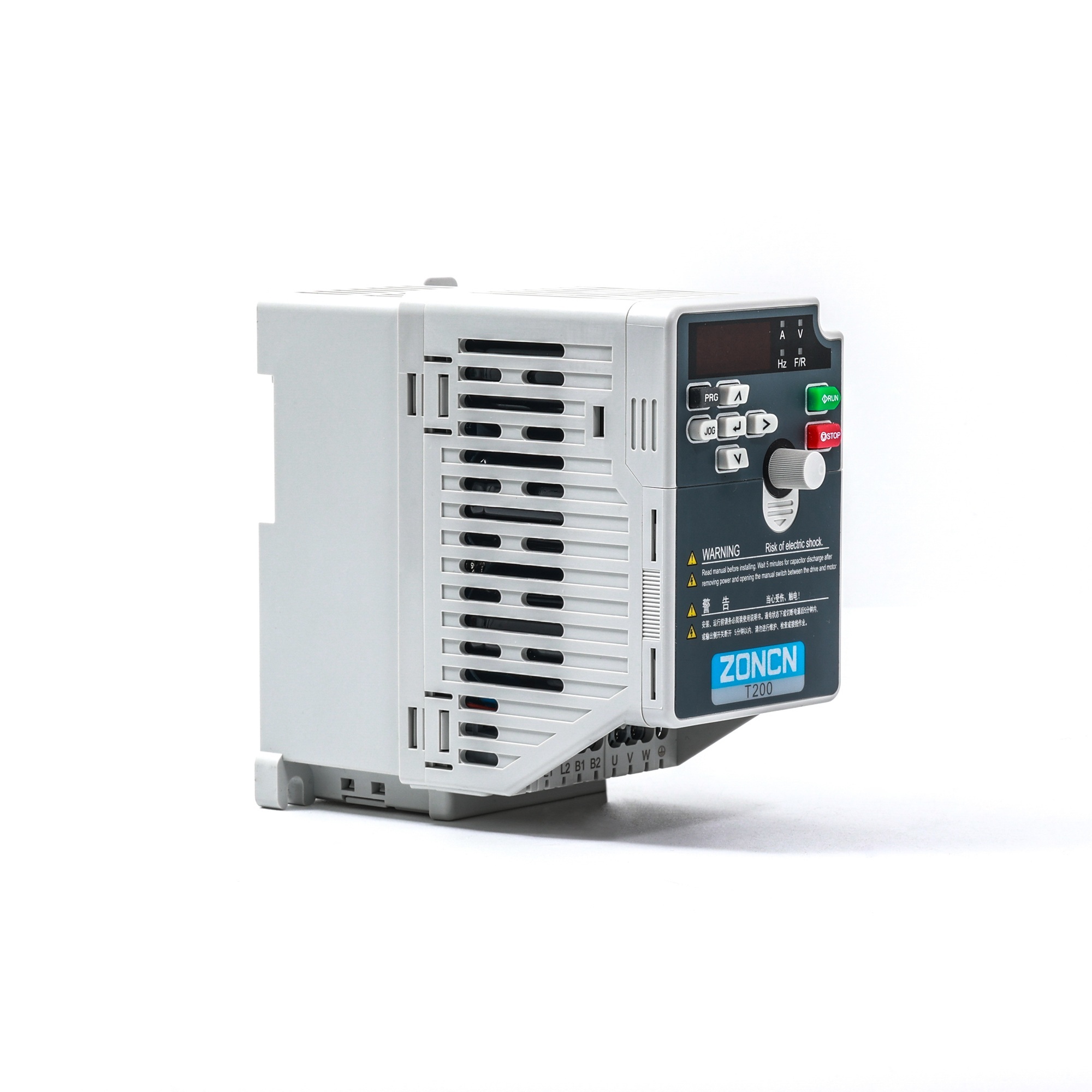

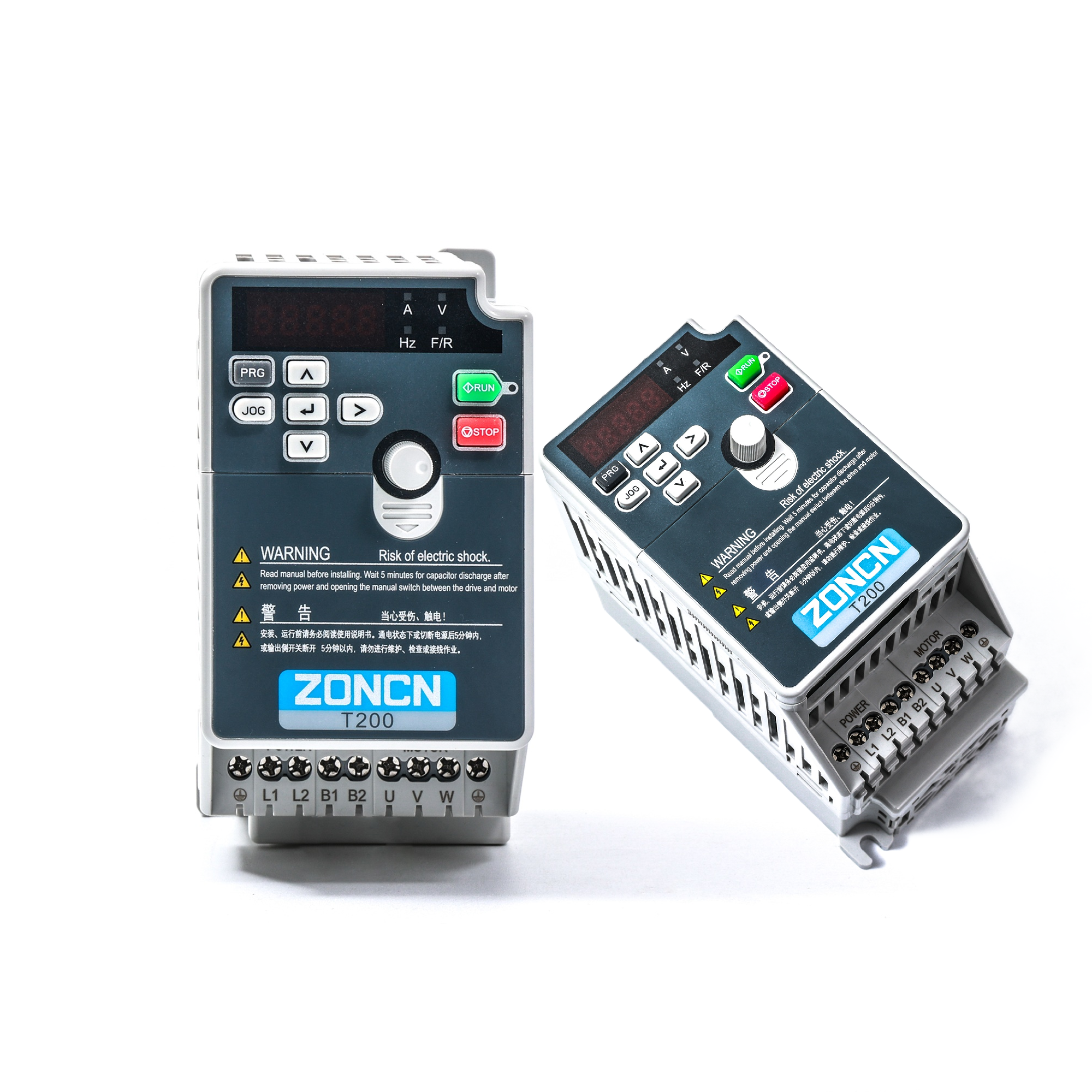

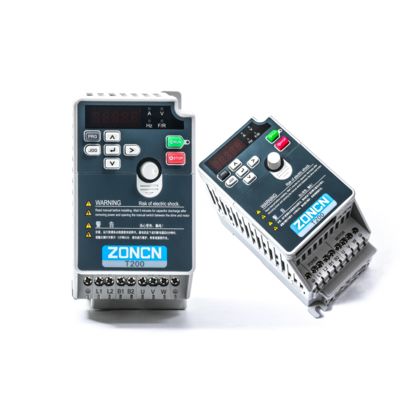

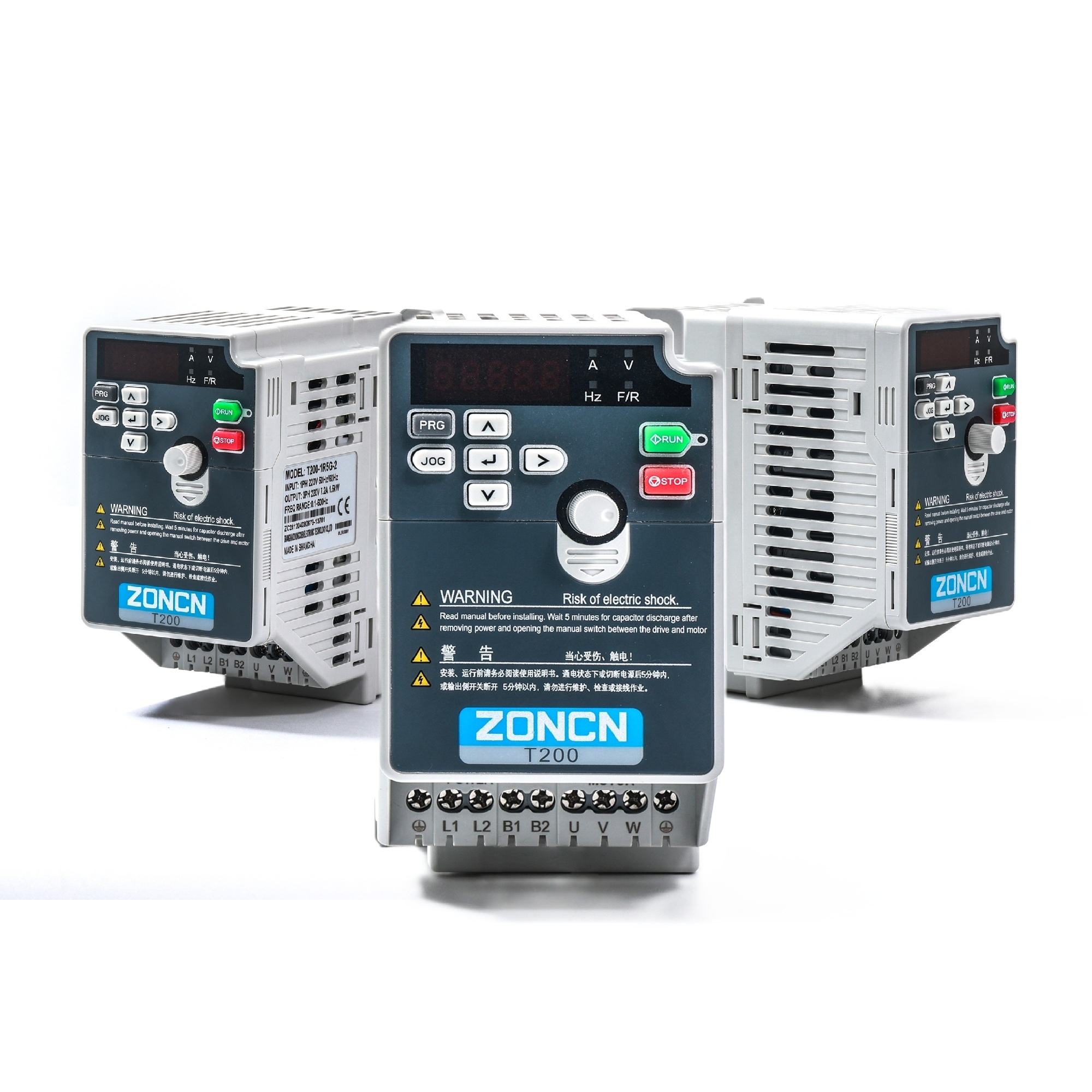

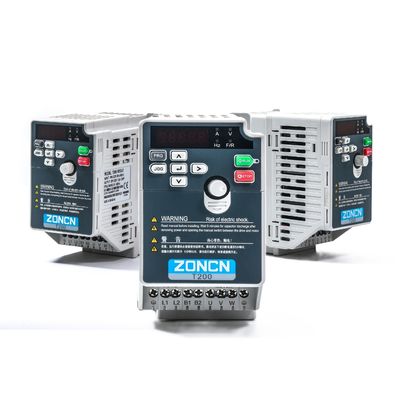

0.4kw-160kw Variable Frequency Drive with 18 Months Warranty and Multi-mode Control VFD Inverter

Founded in 2006 and headquartered in Shanghai, ZONCN is a listed high-tech enterprise. Covering nearly 100 acres with Wuhu-based production and export bases, it integrates R&D, production, sales, and service, boasting an annual capacity of 1million units and 1000+ employees. Guided by the mission of "energy conservation via advanced technology," its products serve global industries and earn CE, ISO9001 certifications.

ZONCN’s VFD (variable frequency drive) portfolio is robust, with 6 core series (NZ100, NZ200, Z2000, Z8000, T9000, H5000) spanning 0.4kW–2000kW and 110V–1140V. Supporting V/F and vector control, they excel in energy efficiency—ideal for fans, pumps, and air compressors—and offer overload protection (150%/60s, 180%/3s). Widely used in textiles, metallurgy, and water treatment, models like the NZ200 enable precise speed tuning and soft start/stop to extend equipment life.

Designed for high-precision scenarios like CNC machines and packaging, they deliver stable torque and speed control. With global presence in 50+ countries and 24/7 technical support, ZONCN stands as a leading domestic provider of industrial automation solutions.



1. Multi-mode control: The ZONCN T200 series VFD inverter supports V/F control, sensorless flux vector control (SFVC), and optional closed-loop vector control, integrating mature VFD inverter regulation technologies for diverse motor needs.
2. Wide frequency range: This VFD inverter achieves 0.0-600.0Hz in vector control and 0.0-3200Hz in V/F control, with 0.01Hz digital setting resolution—key precision of the VFD inverter.
3. Strong start torque: The VFD inverter delivers robust torque: G-type models reach 0.5Hz/150% (SFVC), P-type 0.5Hz/100%, a core advantage of this VFD inverter.
4. Stable speed performance: The VFD inverter maintains a 1:100 speed range (SFVC) and ±0.5% speed stability, ensuring reliable operation of the VFD inverter.
5. Intelligent carrier adjustment: The VFD inverter auto-adjusts carrier frequency (0.5-16kHz) based on load, optimizing efficiency and reducing noise of the VFD inverter.
6. Robust overload protection: This VFD inverter handles overloads: G-type 150%/60s and 180%/3s; P-type 120%/60s and 150%/3s, safeguarding the VFD inverter and equipment.
7. Flexible acceleration/deceleration: The VFD inverter offers 4 groups of 0.00-6500.0s ramps (straight/S-curve), adapting to varied start-stop demands of the VFD inverter.
8. Versatile DC braking: The VFD inverter supports 0.00Hz-max frequency braking, 0.0-100.0s time, and 0.0%-100.0% current, enhancing the VFD inverter’s safety.
9. Rich communication options: This VFD inverter has RS485 and optional EtherCAT/PROFINET/CANopen, enabling seamless integration of the VFD inverter into industrial systems.
10. Practical built-in functions: The VFD inverter includes 16 preset speeds, simple PLC, PID control, and AVR, expanding application scenarios of the VFD inverter.
